New Front Tyre Damage Detection
We have extended our damage detection to include sealed separations on the front steer axle (positions 1 and 2). While this provides coverage for all six tyres, please keep the following operational details in mind:
- Injury Location: Red bounding boxes will appear on the front thermal video to show exactly where the damage is located.
- Temperature Limits Only: The system currently provides absolute and differential temperature measurements for front injuries. It does not yet provide size estimates (height, width, or area).
- Risk Alerts: Because size data is not yet available, TARP risk alerts for front tyre size will always show as "None." You must rely on the temperature-based alerts to assess front tyre risk against your site thresholds.
- Visual Limitations: There are currently no line scan images or injury snapshots available for front tyre positions.

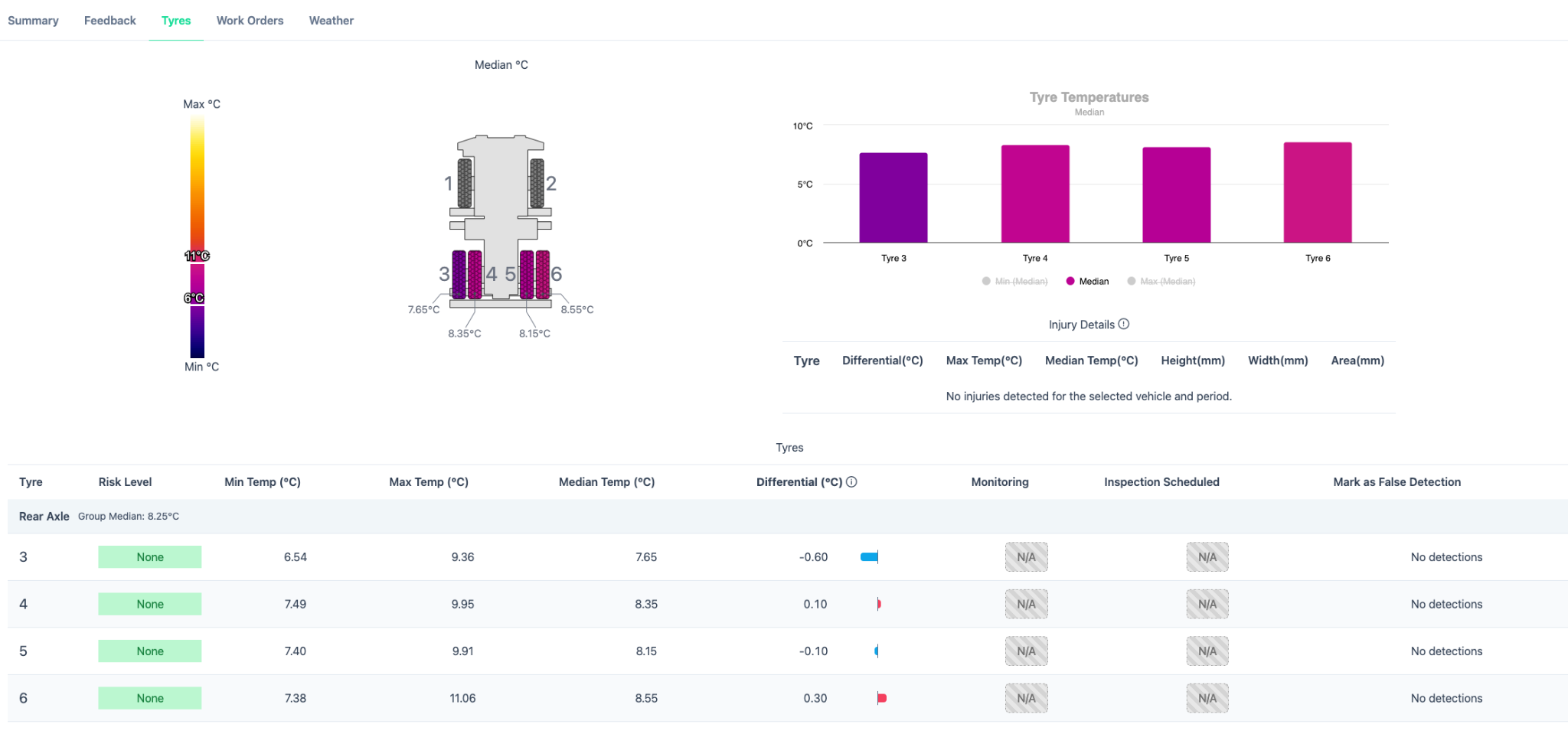

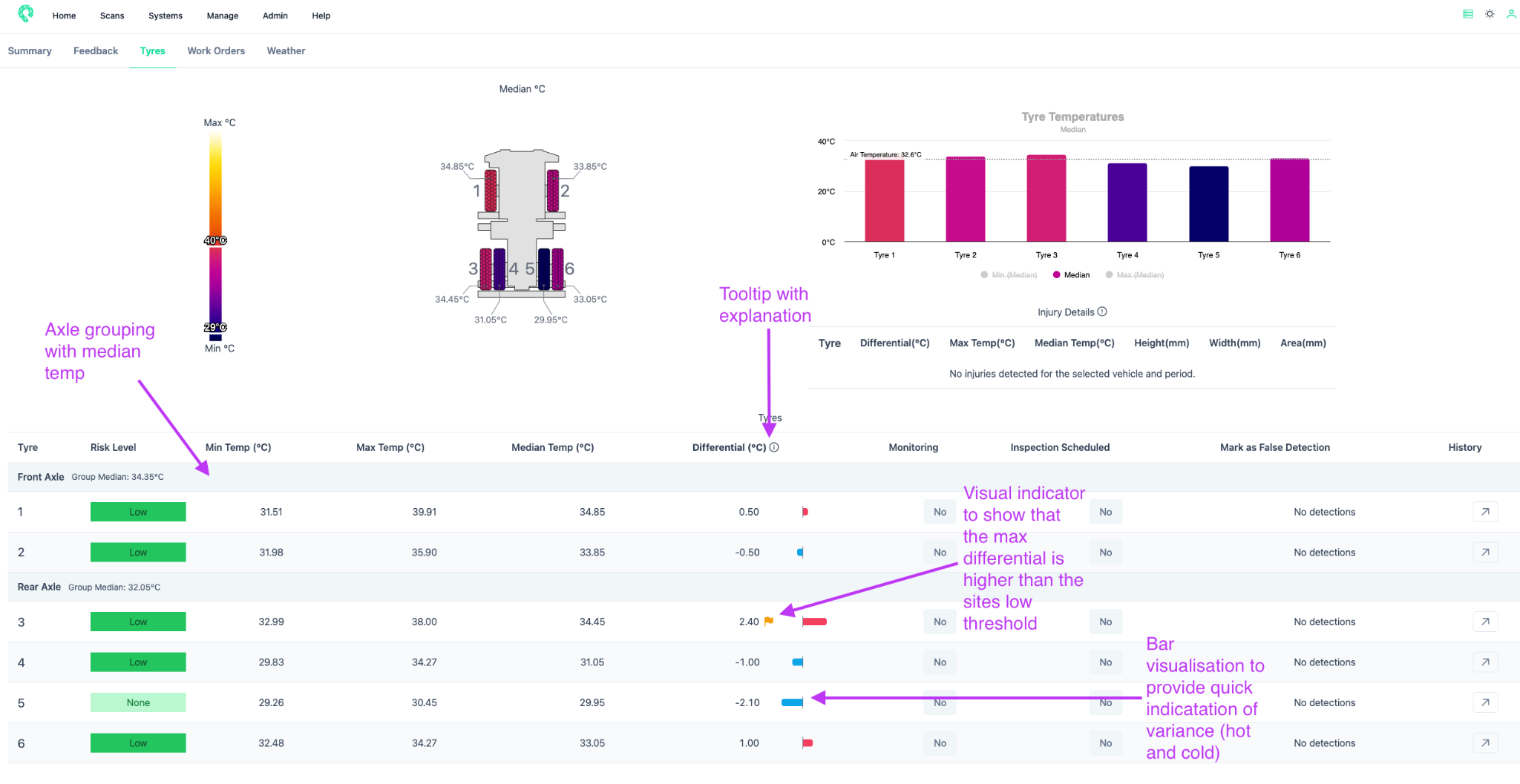

New "Axle Grouping" View
- Median Temperatures: Tyres in the dashboard table are now grouped by axle, showing the median temperature for that group to help you spot outliers.
- Visual Heat Indicators: A new bar indicator scales against your site's limits, providing a quick visual "red flag" for hot tyres.
Dashboard Improvements
- In-Record Linescans: Linescan images (for rear tyres) are now visible directly inside the individual motion record view.

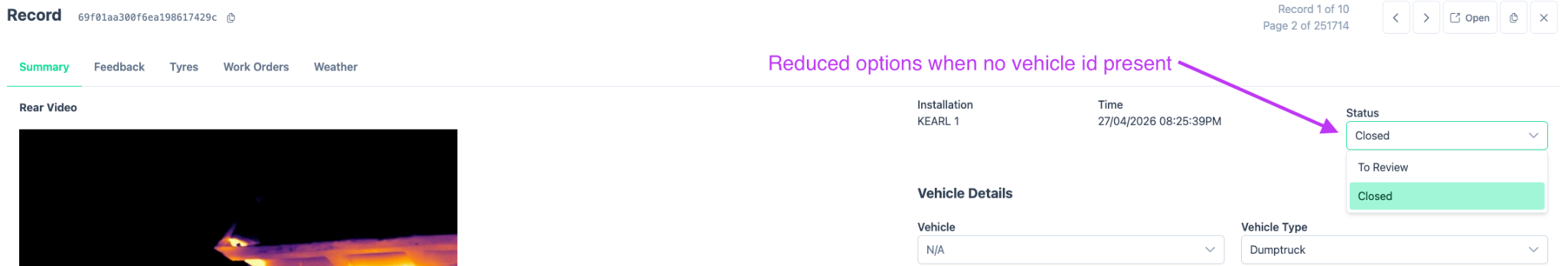

- Data Integrity: If a vehicle ID is missing (N/A), the dashboard will block you from setting a scan status to "Injury Under Monitoring".
- Fixed Error Icons: We removed a persistent "connection error" icon on the Systems page that was appearing even when the system was working fine.
